  • Blue Sea 3000 HD-Series Battery Switch Single Circuit ON/OFF [3000]

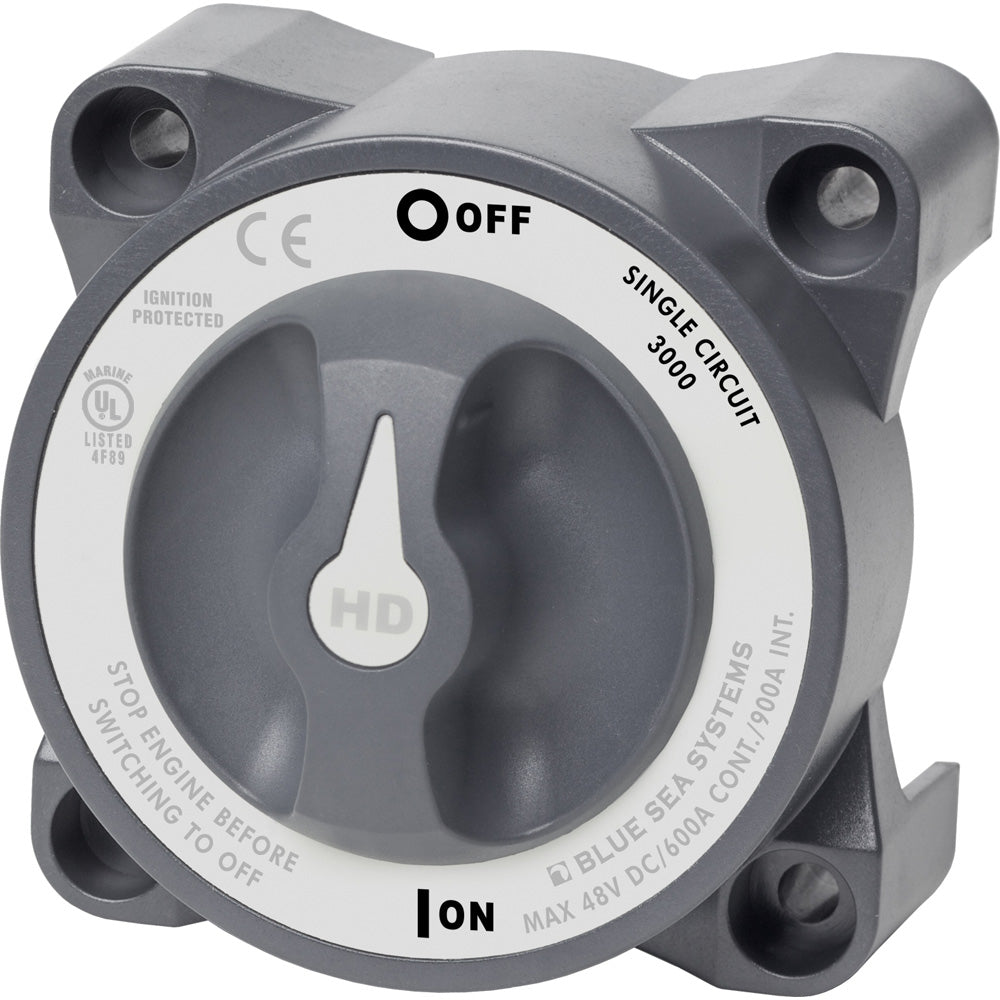

    HD-Series Battery Switch Single Circuit ON/OFF


    • 600 Ampere Continuous Rating
    • Accepts two 4/0 battery cables per terminal
    • Ignition protected - safe for installation aboard gasoline powered boats
    • .870" (22.01mm) stud length to accept multiple cable terminals

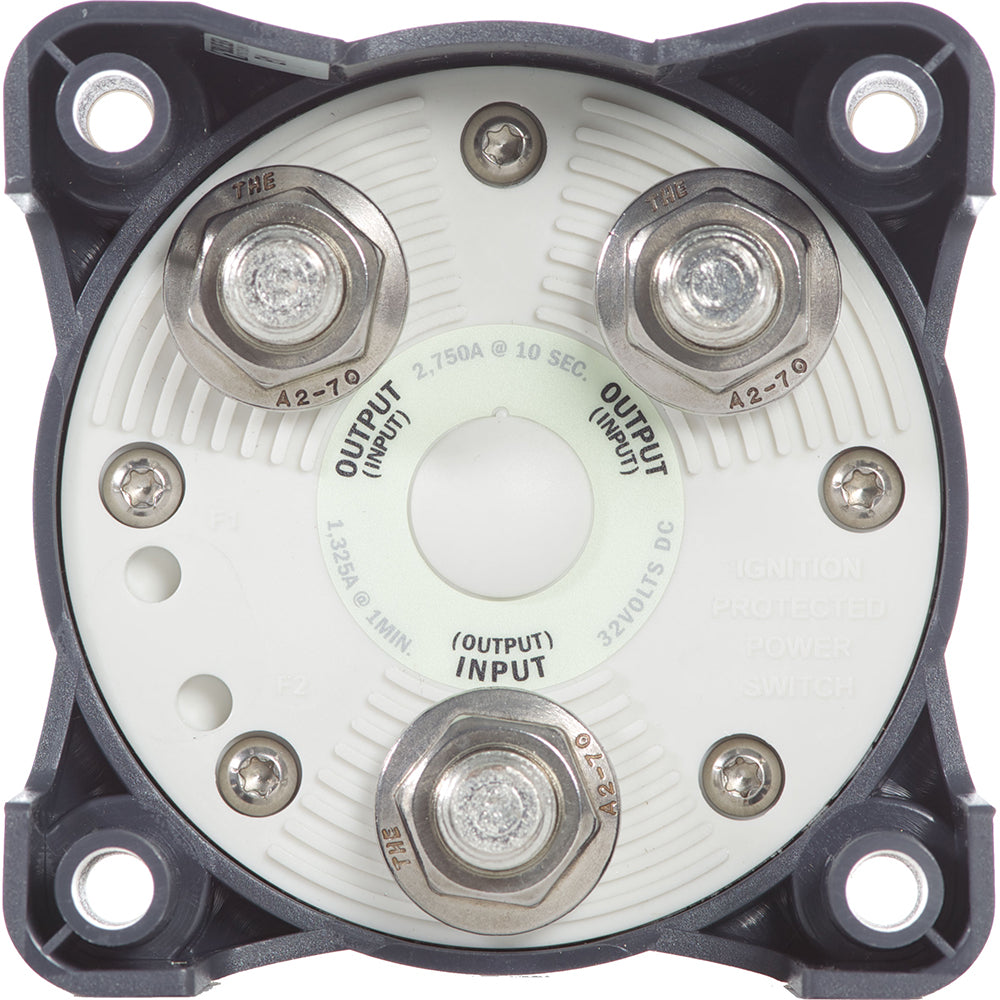

    • 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
    • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
    • Tactile textures indicate knob position by feel only

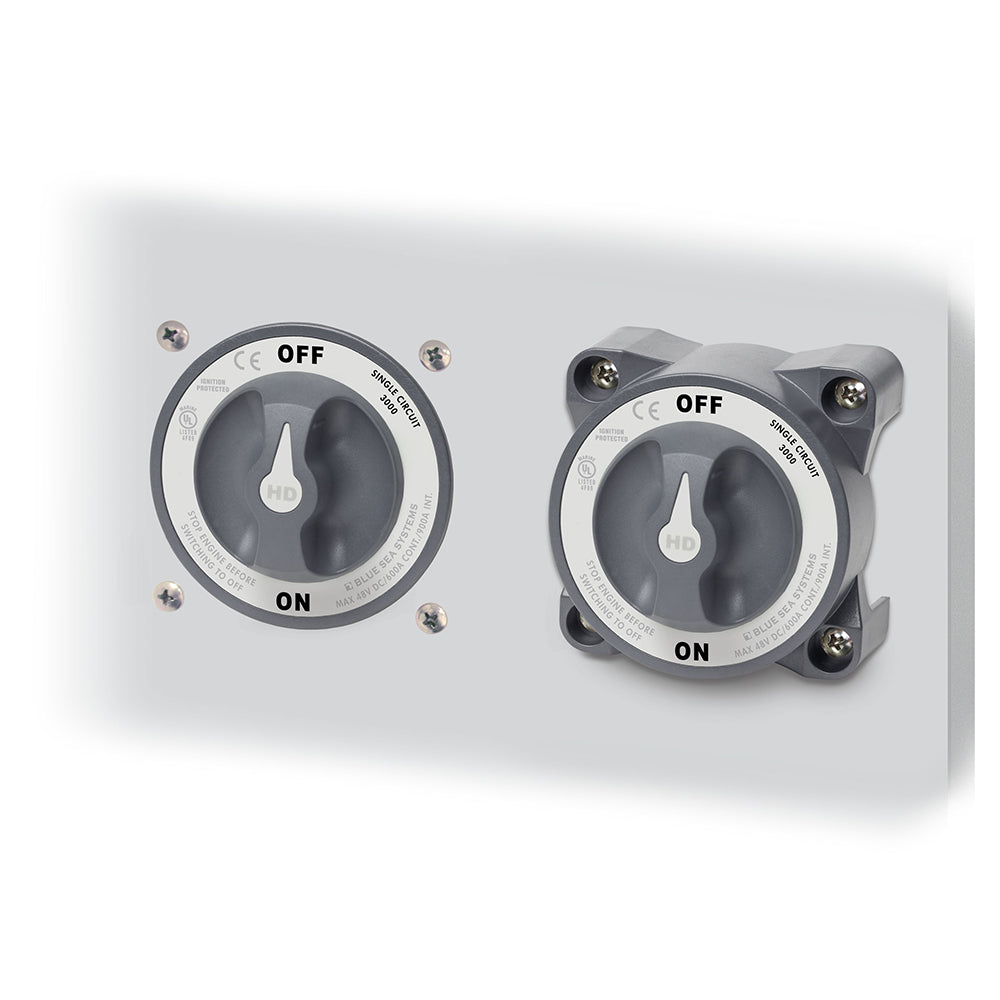

    • Case design allows surface or rear panel mounting
    • Fits all Perko and Guest low amperage battery switch hole patterns

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


    • Positions: 2
    • AFD: No
    • Continuous Amperage: 900a
    • Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs
    • UPC: 632085030001

    Owner's Manual (pdf)
