  • Blue Sea 7042 187-Series Circuit Breaker - Panel Mount 80A [7042]

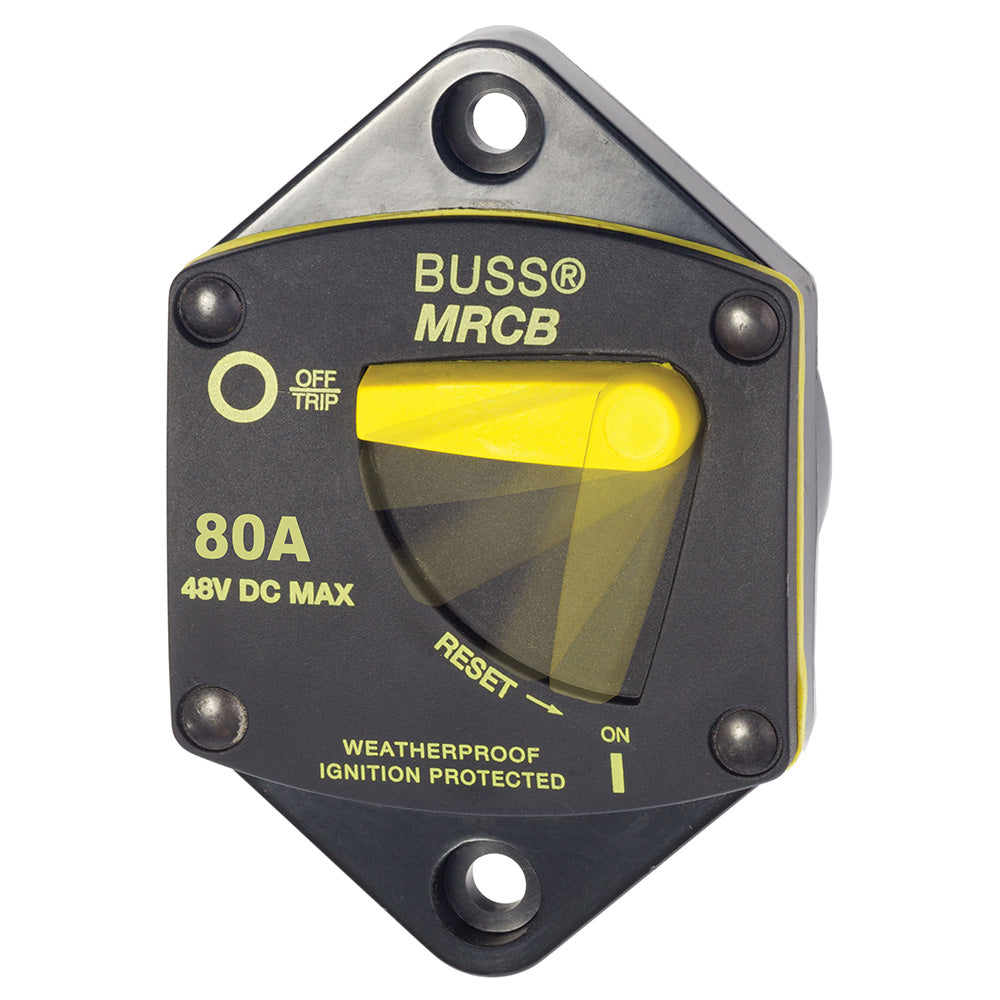

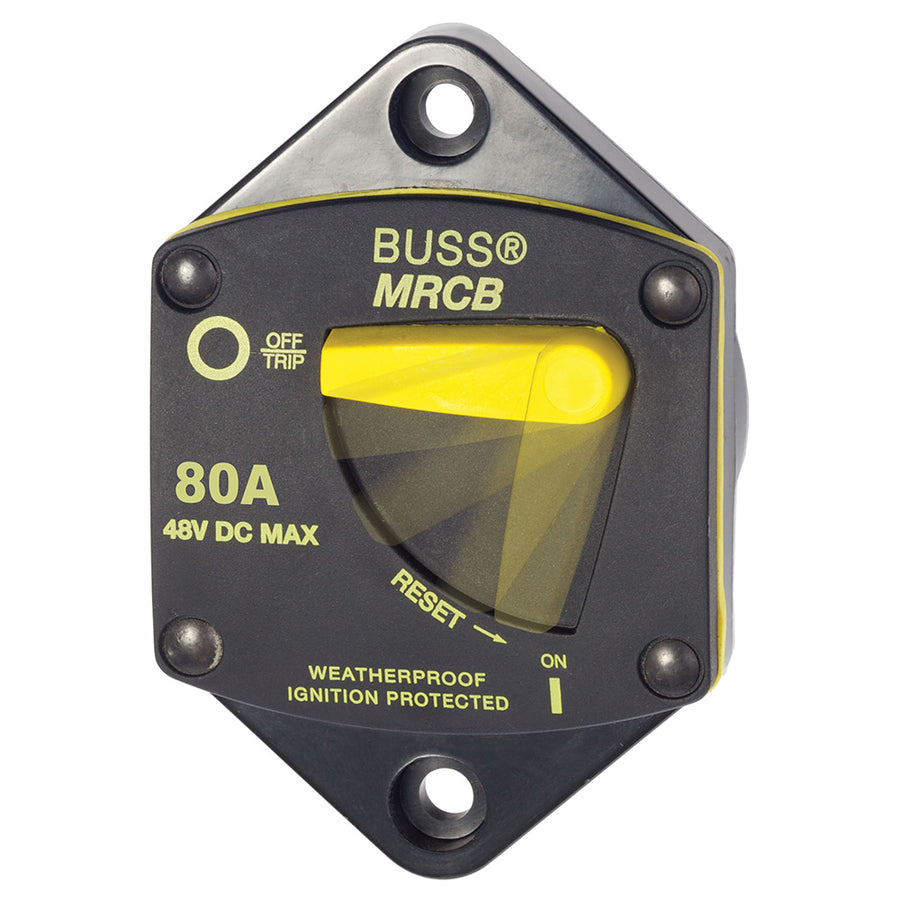

    7042 187-Series Circuit Breaker - Panel Mount 80A


    • Combines switching and circuit protection into a single device*
    • Precise, single-lever operation
    • "Trip Free" design cannot be held "ON" during fault current condition
    • Waterproof
    • Recessed mounting holes for clean appearance
    • Ample Clearance around terminal studs accepts heavy gauge wire lugs
    • Robust 5/16 M8 terminals provide high torque connections
    • Large lever with vertical/horizontal orientation provides indication of trip status
    • Ignition-protected - Safe for installation aboard gasoline powered boats


    • Amperage: 80A
    • Maximum Voltage: 48V DC
    • Mounting: Panel Mount
    • Circuit Breaker Type: Thermally responsive Bi-metal blade
    • Terminal Stud Torque: 75 in-lb (8.47 Nm)
    • Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC
    • Minimum Operating Temperature: -40° C
    • Maximum Operating Temperature: 85° C
    • Case Material: Thermoset Polyester
    • Circuit Breaker Class: Type III - switchable/manual reset - trip-free
    • Mounting Hole: Accept #10 (M5) Screw
    • Terminal Stud Size: 5/16" - 18
    • Weight: 0.5lb (0.23 kg)
    • Weight: 0.50lb (0.23 kg)

    * Do not use as a switch where high inrush currents are expected.

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


    • Amperage: 80a
    • Box Dimensions: 2"H x 5"W x 8"L WT: 0.5 lbs
    • UPC: 632085170424
