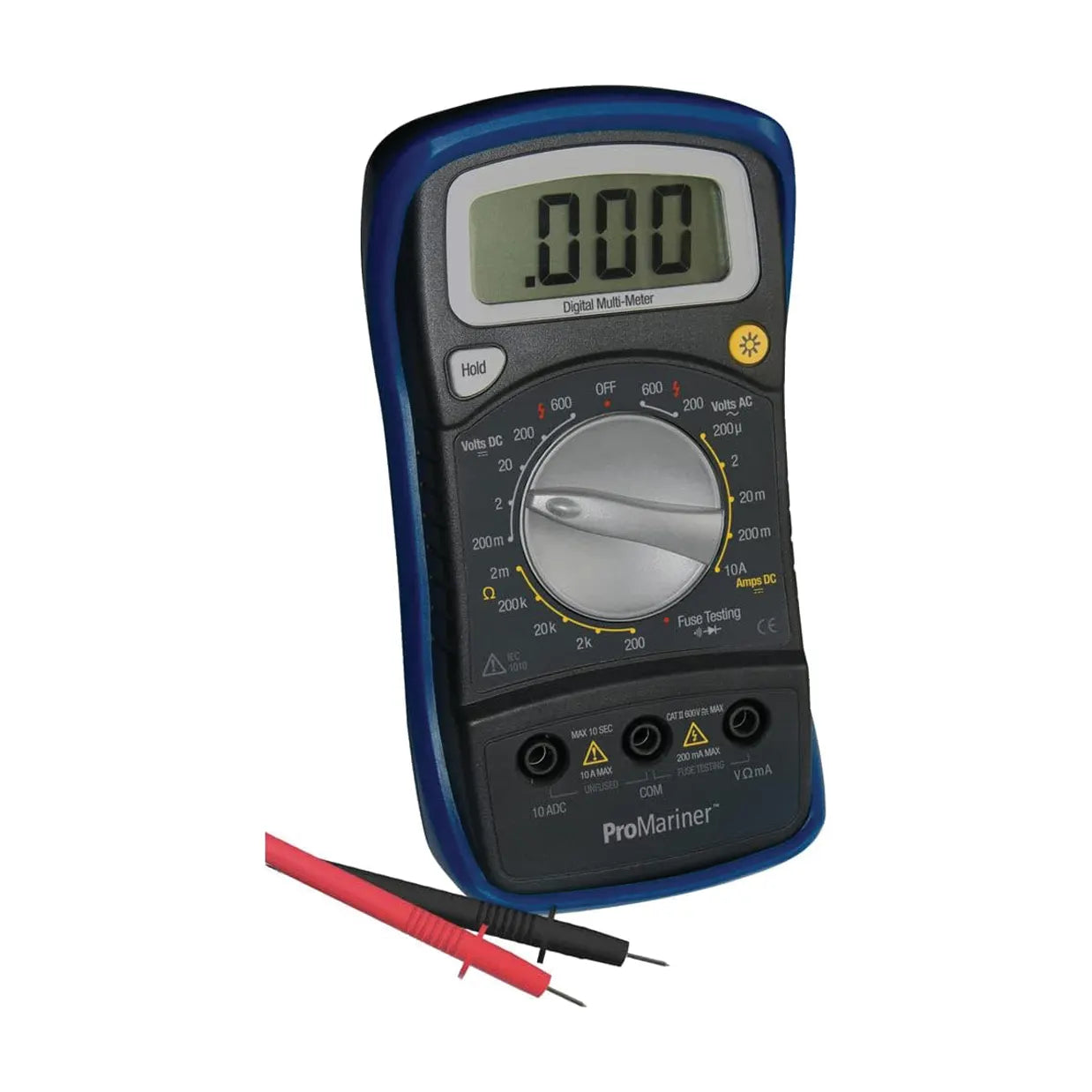

ProMariner Handheld Digital Multi-Meter [87730]

Handheld Digital Multi-Meter

The handheld digital multi-meter provides excellent performance in a portable, durable housing with a large LCD display for clear visibility. With overall circuitry design centering on large-scale IC A/D converters in conjuction with over-load protection the meter makes a great utility instrument.

The meter can be used to measure DC and AC voltage, DC current, resistance, positive diode voltage fall and continuity.

Features:

• Measures AC/DC amperage and voltage

• Measures continuity and resistance

• Large digital LCD display

• Backlight feature

• Test leads included

• Measurement hold feature

• Built in EZ stand

• Continuity tone alert

• Low battery indicator

• Max Voltage between input terminal and earth ground: CAT 600V

• Over-range indication: display "1" for the significant digit

• Automatic display of negative polarity "-"

• Max LCD display: 1999 (3-1/2 digits)

• Fuse protection: F-200mA/250V (05 x 20mm)

• Power Supply: 9V battery, 6F22 or NEDA 1604

• Operating Temp: 32° F to 104° F (relative humidity <85%)

• Storage Temp: 14° F to 122° F (relative humidity <85%)

• Weight approximate: 0.4 lbs. (including battery)

• Test leads: electric rating 1000V 10A

• Battery: 9V, 6F22 or NEDA 1604

• Fuse: F-200mA/250V

• Operator's Manual

• Holster
