  • Quick SBC 1200 NRG+ Series Battery Charger - 12V - 100A - 3-Bank [FBNRP1200FR0A00]

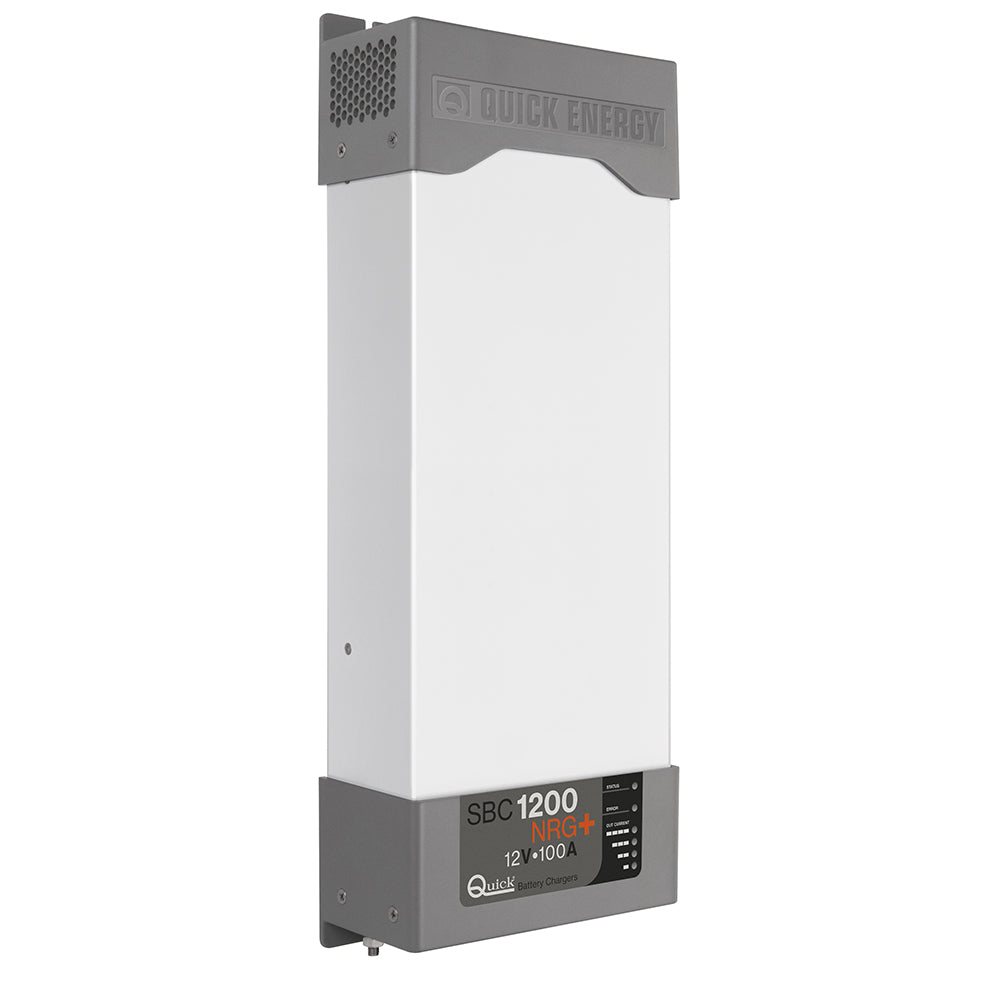

    SBC 1200 NRG+ Series Battery Charger - 12V - 100A - 3-Bank

    The long experience we have in the nautical field has given us the ability to evolve the range of SBC battery chargers, now called NRG+, with superior performance to those currently on the market.

    The advantages which the SBC NRG+ battery chargers offer, are:

    • Three stage IUoU battery charging
    • High efficiency
    • Multiple outputs in order to charge more groups of batteries (MOSFET charge separator inside)
    • Differentiated charging for open or sealed liquid electrolite, Gel, AGM, Optima®, Li-Ion Batteries
    • Integrated output fuses inside the battery chargers (for each output)
    • Capacity of supplying full power with low AC mains voltage
    • Possibility to connect in parallel up to three battery chargers of the same model for current sharing by means of digital control
    • Low residual fluctuation on output
    • Universal AC supply input 264 ÷ 83 Vac, 45 ÷ 66 Hz
    • Power factor equal to 1
    • Compatible with the generators
    • Short circuit, overloading, output overvoltage and overheating protection
    • Can work in a wide range of ambient temperatures
    • Variable speed for the cooling fan
    • User interface via LEDs that signal the status, errors and the output current
    • Backlit LCD terminal with multi-language interface (optional)
    • Charge is compensated according to the temperature of the batteries (1 sensor supplied; more senors optional)

    Specifications:

    • Charger Input - Voltage: 120/230v
    • Portable: No
    • Charging Banks: 3
    • Charger Output Voltage: 12v
    • Charger Output - Amps: 100a
    • Box Dimensions: 6"H x 13"W x 23"L WT: 12.9 lbs
    • UPC: 8057090147834

    Owner's Manual (pdf)
