![Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300 [E66086]](http://sportfishoutfitters.com/cdn/shop/products/26251XL.jpg?v=1569157583&width=1200)

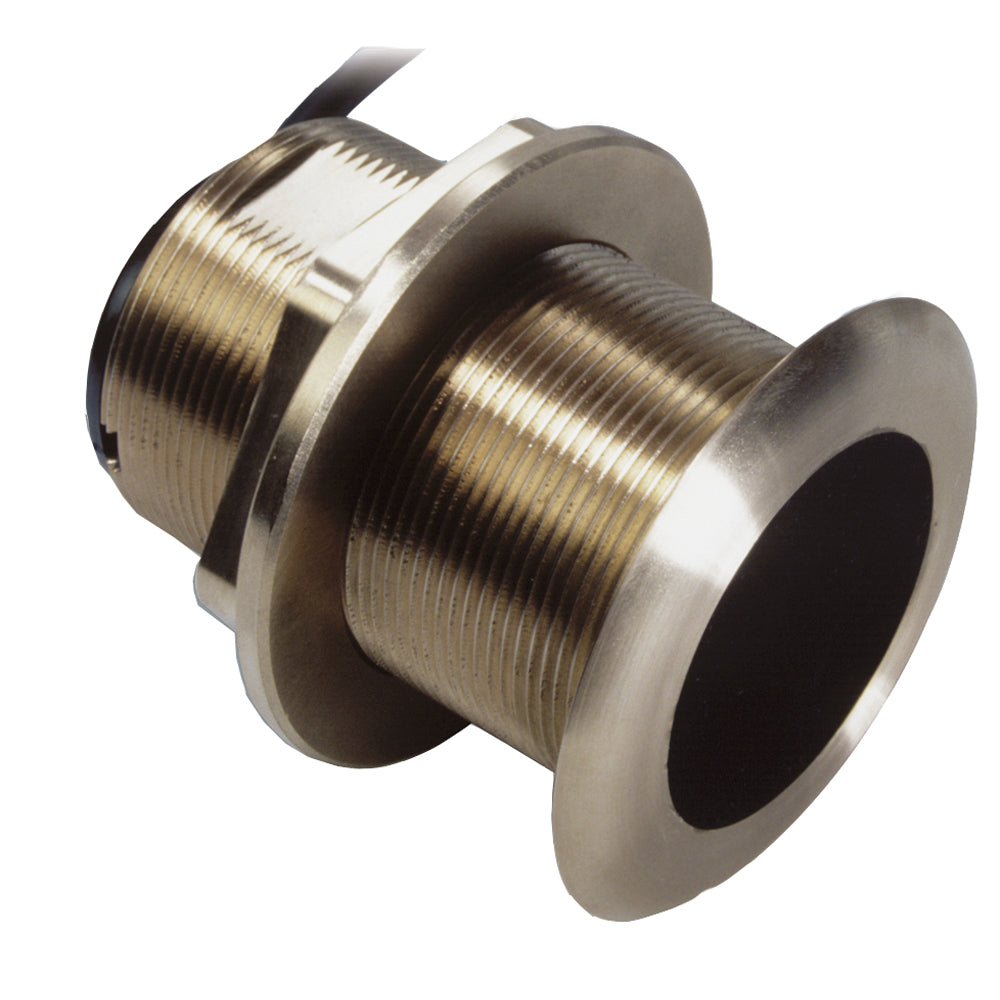

Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300 [E66086]
$ 354.99
B60 Tilted Element 12°
12° titled version is designed for 8° - 15° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imagining: Standard
- Chirp: No
- Cable Length (Feet): 33'
- Box Dimensions: 4"H x 8"W x 11"L WT: 5 lbs
- UPC: 723193660867
Owner's Manual (pdf)
Brochure (pdf)
