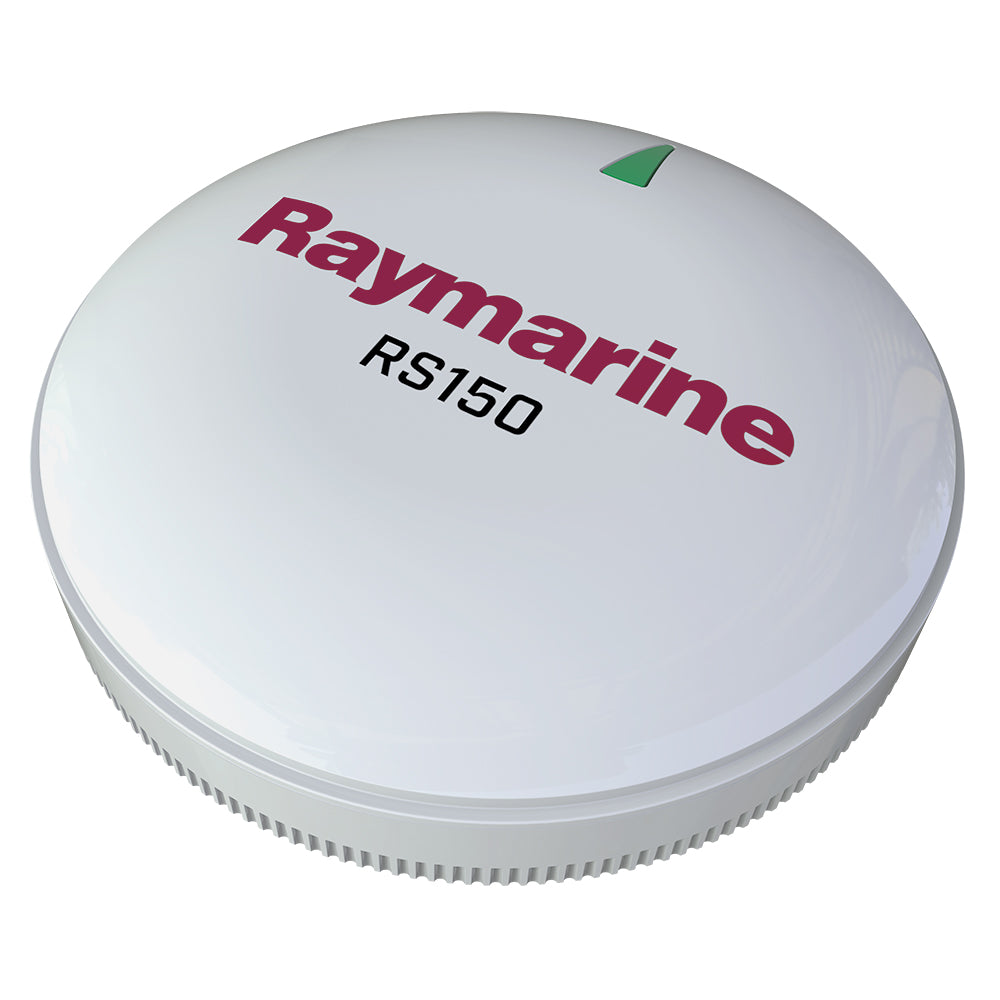

  • Raymarine RS150 GPS Sensor [E70310]

    RS150 GPS Sensor

    The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

    Features:

    • 72-channel GPS receiver
    • Fast 10Hz position updates
    • Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
    • A GNSS receiver with GLONASS compatibility
    • Low power consumption: 30mA (1 LEN)
    • SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
    • Designed for low profile surface mounting or optional pole mounting

    Specifications:

    • Nominal supply voltage: 12V D.C. Powered by N2K bus
    • Operating voltage range: 8 - 32V DC
    • Power consumption: 30 mA max (NMEA LEN = 1)
    • Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
    • Relative humidity: max 93%
    • Waterproof: IPx6/7
    • Supported connection protocols: SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
    • Sensitivity: High sensitivity - acquisition down to -163dBm
    • No. of channels: 72
    • Positioning System: GPS & GLONASS
    • Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
    • Differential acquisition: Automatic
    • Position accuracy (95%): <15M
    • Position accuracy with SDGPS (95%): <5M
    • Speed accuracy (95%): <0.3kt
    • Time to first fix from cold start: <2 minutes (< 45 seconds typical)
    • Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
    • Geodetic Datum: WGS84

    Specifications:

    • Type: Antennas
    • Box Dimensions: 4"H x 7"W x 9"L WT: 1.8 lbs
    • UPC: 723193796917
