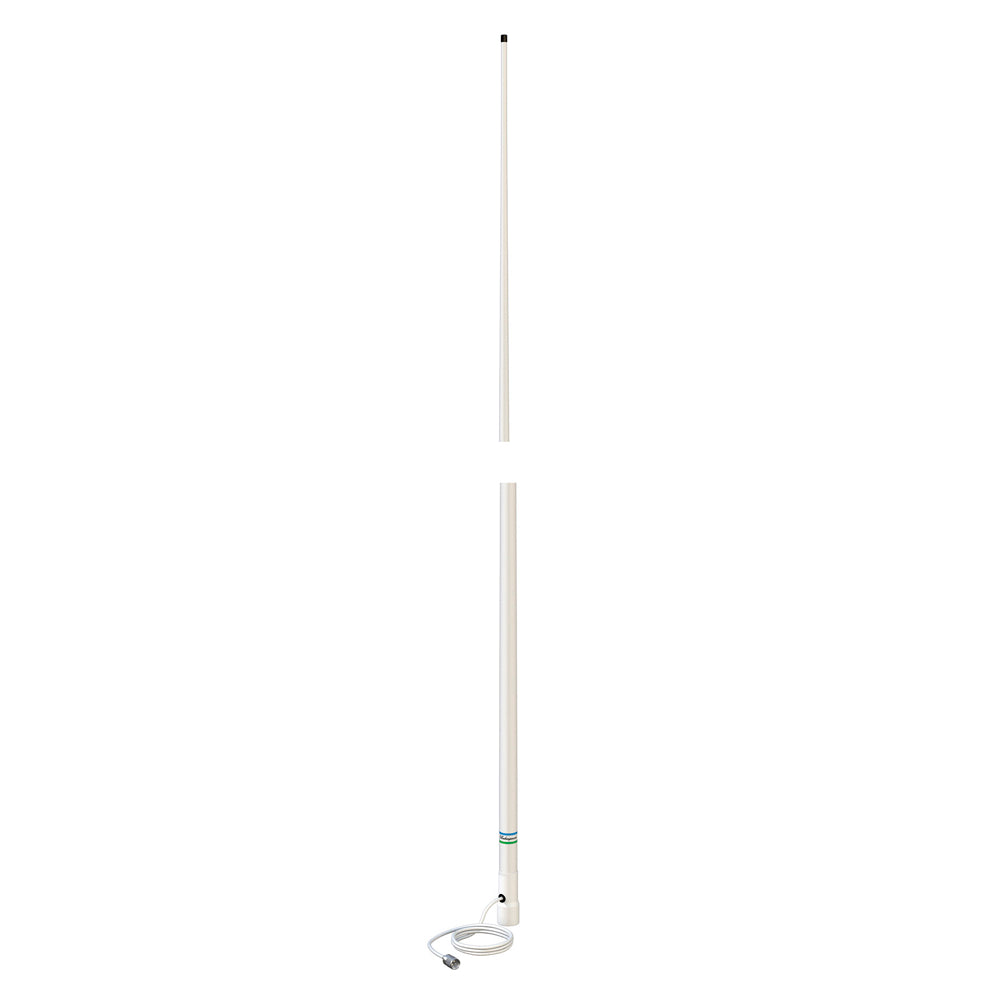

  • Shakespeare 5206-N 8' VHF Antenna [5206-N]

    Shakespeare Style 5206-N VHF Marine - Reduced Length Version

    8' LENGTH 6dB

    END-FED WITH MATCHING STUB

    Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

    An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

    • Quality copper cable elements for good range and efficiency
    • Nylon ferrule with standard 1"-14 thread
    • Includes 15' RG-58 cable and a PL-259 connector
    • Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
    • Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
    • One section
    • Shakespeare Limited Warranty: 2 years


    Technical Specifications:


    Frequency: VHF Marine band
    Bandwidth: 3 MHz
    SWR: 1.5:1 @156.8 MHz
    Impedance: (Ohms): 50
    Gain: 6 dB
    Max Input (Watts): 50
    DC Ground: NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.
    Termination: RG-58
    Height (feet): 8
    Polarization: Vertical
    Radiation pattern: Omni-directional

    Specifications:

    • Antenna Band: VHF
    • Color: White
    • Construction: Fiberglass
    • Ferrule Type: Nylon
    • Length (Inches): 96"
    • Box Dimensions: 3"H x 3"W x 95"L WT: 2.4 lbs
    • UPC: 719441100186

    Quick Guide (pdf)
