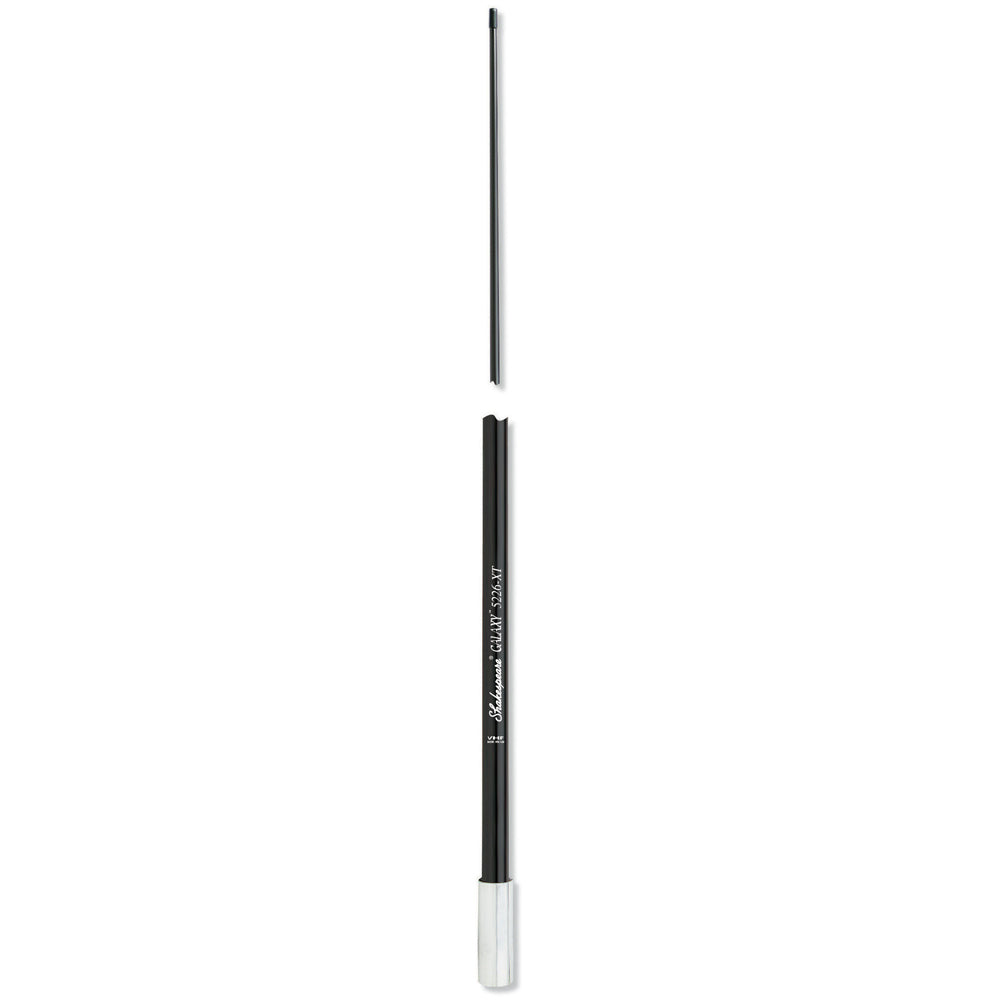

  • Shakespeare 5226-XT 8' Black VHF Antenna [5226-XT]

    Shakespeare Galaxy Style 5226-XT - Reduced Length
    8' VHF 6dB Gain
    Collinear-phased 5/8 wave elements


    This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

    • Brass and copper elements for maximum range and efficiency
    • Stainless steel ferrule with standard 1"-14 thread
    • 20' RG-8/X low-loss cable plus a PL-259 connector
    • Suggested mount: Shakespeare Style 4187 Ratchet Mount
    • One section
    • Shakespeare Limited Warranty: 5 years

    Technical Specifications:

    Frequency: VHF Marine Band
    Bandwidth: 3 MHz within 2.0:1 VSWR
    SWR: nominally 1.5:1 at 156.8 MHz
    Impedance: 50 ohms
    Gain: 6 dB
    Max Input (Watts): 100 watts
    DC Ground: YES
    Height (feet): 8
    Polarization: Vertical


    • Antenna Band: VHF
    • Color: Black
    • Construction: Fiberglass
    • Ferrule Type: Stainless Steel
    • Length (Inches): 96"
    • Box Dimensions: 3"H x 3"W x 95"L WT: 2.4 lbs
    • UPC: 719441200237

    Quick Guide (pdf)
